Teejet QJ380 – 3/4″ Pipe – Wet Boom High Flow 3 Nozzle Body
$55.25 $27.63
2 in stock
QJ380 High Flow Nozzle Body
2 in stock
Description

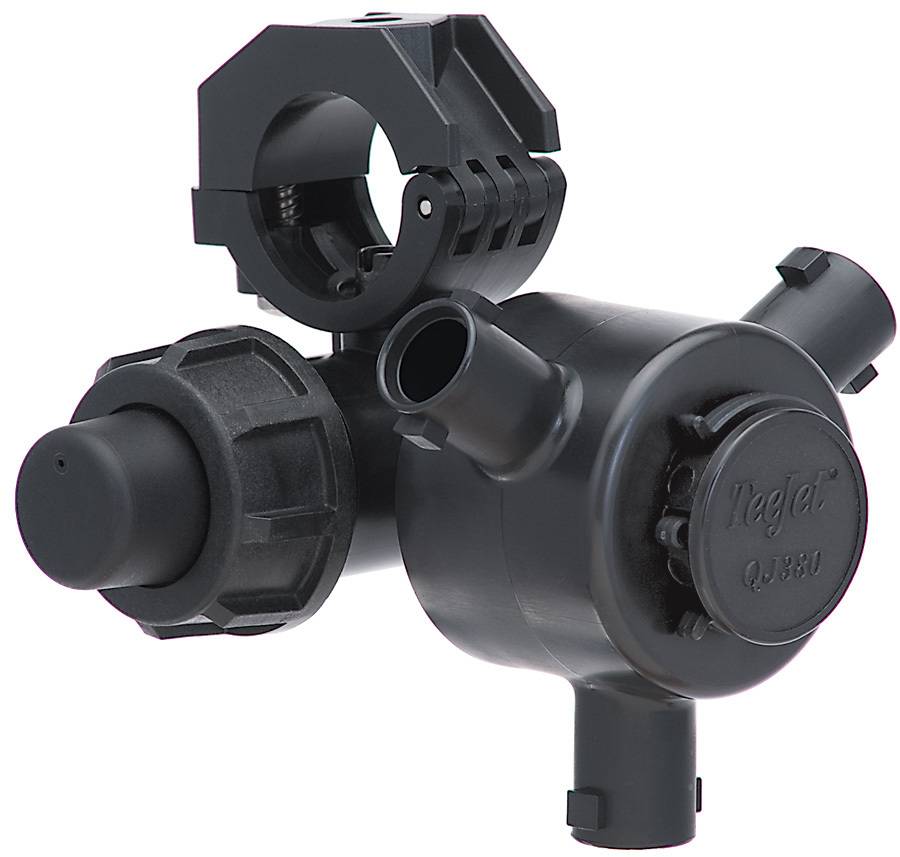

QJ380 High Flow Nozzle Body
High capacity multiple outlet nozzle body is ideal for high speed, high volume applications including liquid fertilizer.
Available with 3 spray positions for easy change of spray tips or quick boom flushing.
Positive shutoff between each spray position.
Automatic spray alignment when using flat fan spray tips.
Maximum operating pressure of 150 PSI (10 bar).
Available in ¾9 or 19 pipe size.
Requires 3/89 (9.5 mm) hole drilled in pipe or tubing.
Includes high capacity ChemSaver® diaphragm check valve for drip-free shutoff. Diaphragm opens at 12 PSI (0.8 bar).
3.0 GPM (11.4 l/min) flow rate at a 5 PSI (0.34 bar) pressure drop.
Molded hex socket in upper clamp for attaching to flat surfaces. Accepts 5/16″ or M8 bolt.
Hinged upper clamp reduces assembly time and fits inside common boom channels.
Constructed of nylon and acetal with Viton® seals and O-rings.
Additional information
| Weight | 0.5266 lbs |
|---|---|
| Dimensions | 6 × 4 × 4 in |
