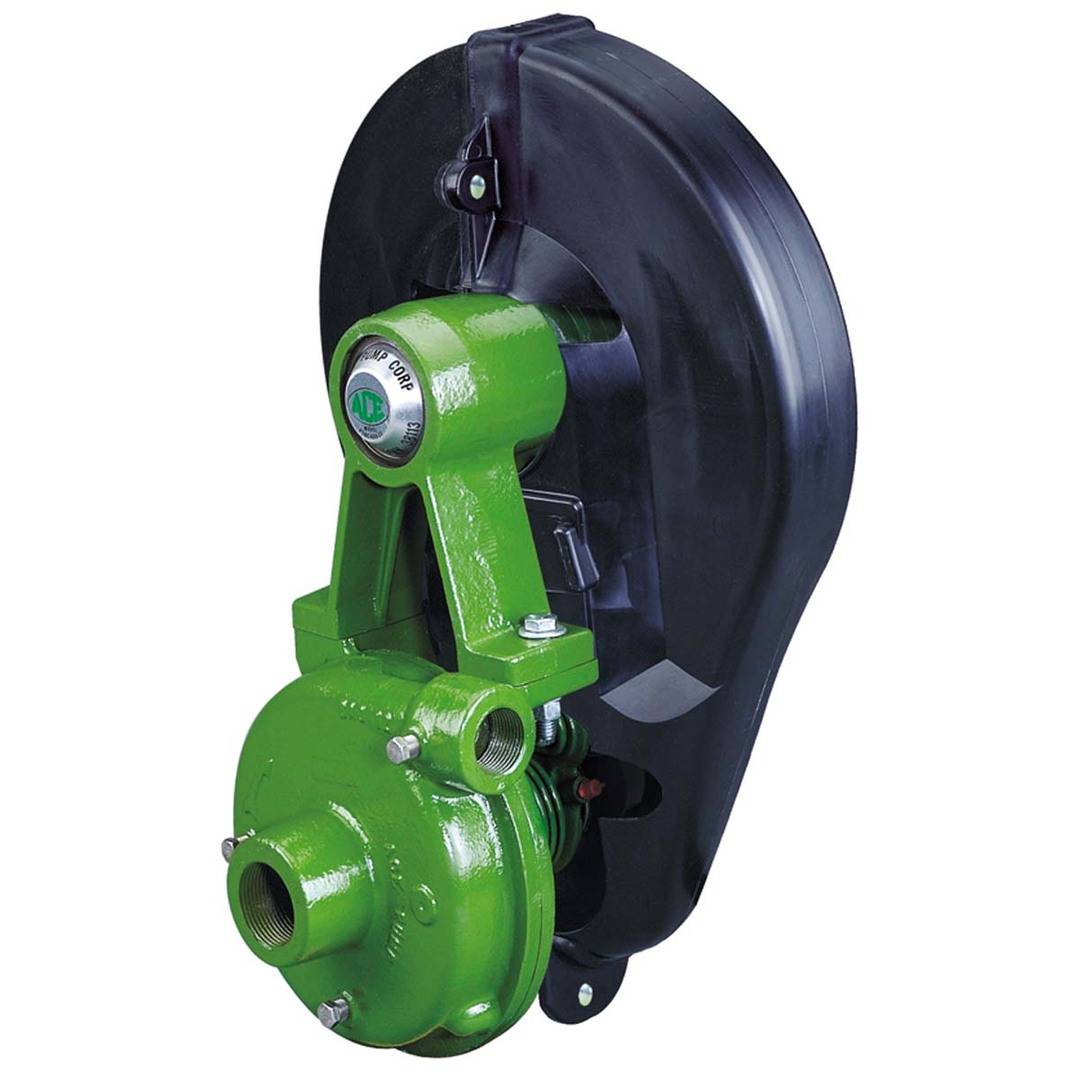

PTOC-600-6SP

Description

Suction 1-1/4″ Female Pipe Thread
Discharge 1″ Female Pipe Thread
Chemical Resistant Valox Impleller
Standard Viton Carbon/Ceramic Mechanical Seal
Spring loaded idler absorbs shock of PTO engagement
New BAC-15-PIN feature ensures proper alignment
Cast iron centrifugal for direct mount on 6 spline, 1-3/8″, 540 RPM PTO Shaft
Maximum Gallons Per Minute – 65 GPM

Maximum PSI – 80 PSI

Do Not Run Dry – Seal damage will result from running dry. Impeller damage may also occur if run dry for an extended period.

Do Not Run With Flow Shutoff For Extended Periods – Running the pump with no flow for extended periods of time will result in excessive heat and pump failure. A continuous bypass is recommended for low flow applications
