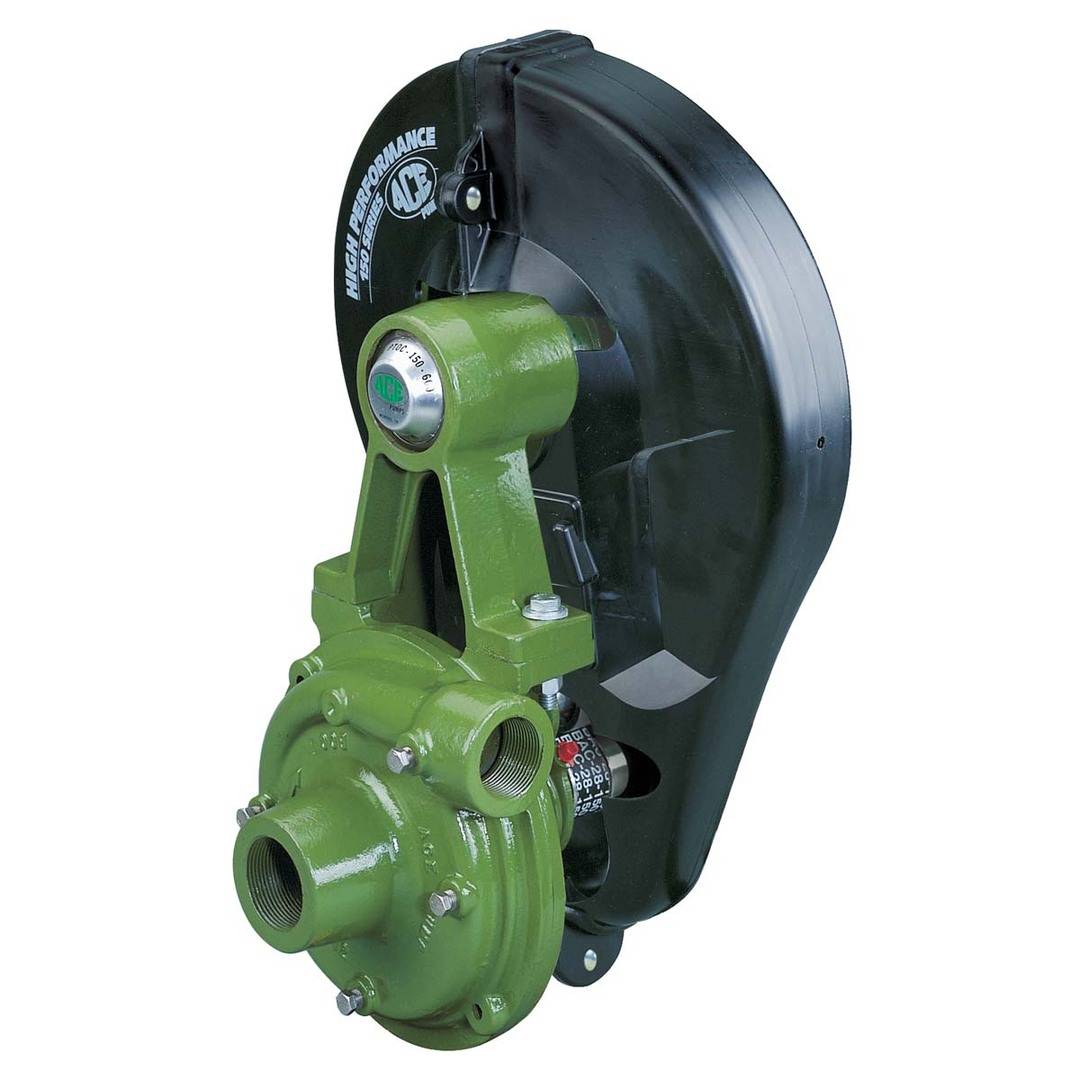

Ace Belt Driven PTOC-150-600-6SPQC
$1,401.12
Combined Location Total – 2 in stock
PTOC-150-600-6SPQC
Combined Location Total – 2 in stock
Description
Suction 1-1/2″ Female Pipe Thread
Discharge 1-1/4″ Female Pipe Thread
Chemical Resistant Valox Impleller
Standard Viton Carbon/Ceramic Mechanical Seal
Spring loaded idler absorbs shock of PTO engagement
New BAC-15-PIN feature ensures proper alignment
Cast iron centrifugal with quick coupler for direct mount on 6 spline, 1-3/8″, 540 RPM PTO Shaft
Maximum Gallons Per Minute – 100 GPM
Maximum PSI – 110 PSI
Do Not Run Dry – Seal damage will result from running dry. Impeller damage may also occur if run dry for an extended period.
Do Not Run With Flow Shutoff For Extended Periods – Running the pump with no flow for extended periods of time will result in excessive heat and pump failure. A continuous bypass is recommended for low flow applications
Additional information
| Weight | 25 lbs |
|---|---|
| Dimensions | 1 × 1 × 1 in |
