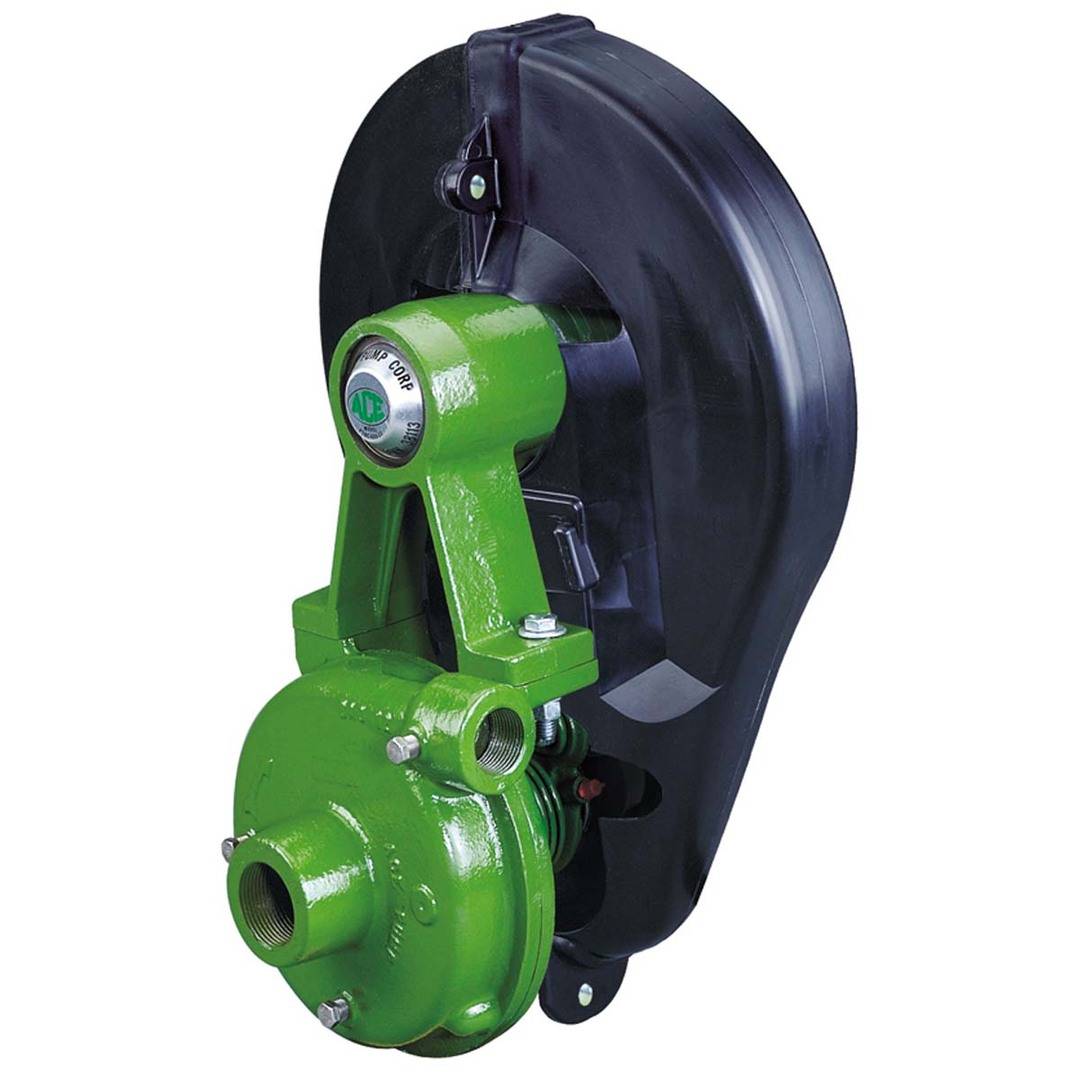

Ace Belt Driven Pump PTOC-1000-20SP
$2,577.96 $1,288.98
PTOC-1000-20SP
Stock levels may vary. Please contact us directly to confirm availability before placing your order.
Description
Suction 1-1/4″ Female Pipe Thread
Discharge 1″ Female Pipe Thread
Chemical Resistant Valox Impleller
Standard Viton Carbon/Ceramic Mechanical Seal
Spring loaded idler absorbs shock of PTO engagement
New BAC-15-PIN feature ensures proper alignment
Cast iron centrifugal with for direct mount on 20 spline, 1-3/4″, 1000 RPM PTO Shaft
Maximum Gallons Per Minute – 65 GPM
Maximum PSI – 80 PSI
Do Not Run Dry – Seal damage will result from running dry. Impeller damage may also occur if run dry for an extended period.
Do Not Run With Flow Shutoff For Extended Periods – Running the pump with no flow for extended periods of time will result in excessive heat and pump failure. A continuous bypass is recommended for low flow applications
Additional information
| Weight | 25 lbs |
|---|---|
| Dimensions | 1 × 1 × 1 in |
