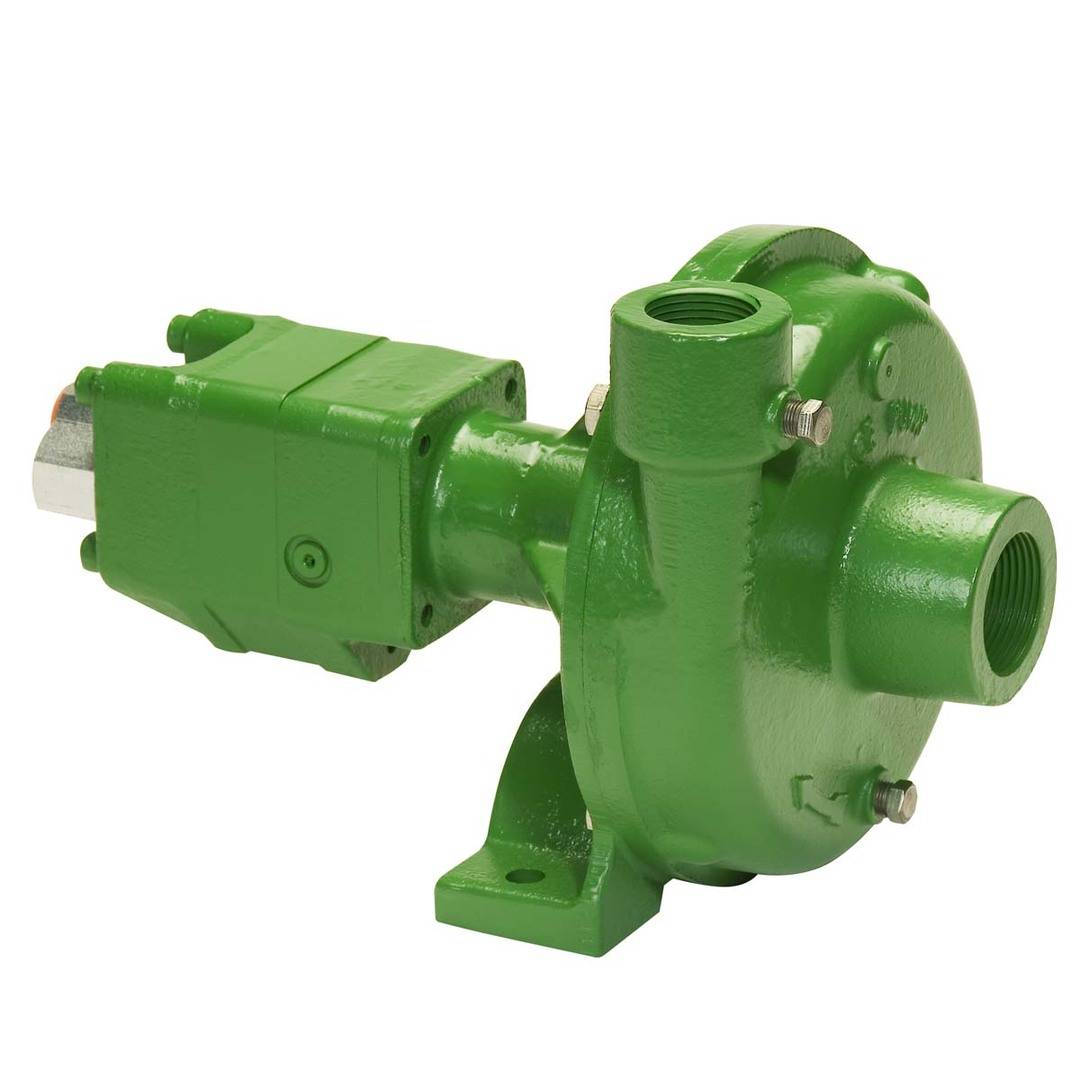

Ace Hydraulic Pump FMC-HYD-204
$2,086.56 $1,043.28
FMC-HYD-204
Stock levels may vary. Please contact us directly to confirm availability before placing your order.
Description
Suction 1-1/4″ Discharge 1″
204 motor requires 4 GPM hydraulic flow on PC Closed and Open Center Systems
Integral Needle Valve bypasses up to 9 GPM on Open Center Systems
Standard with Viton Carbon/Ceramic Mechanical Seal
Chemical Resistant Valox Impeller
Cast Iron Pump
Stainless Steel Shaft and Wear Ring
Maximum Gallons Per Minute – 85 GPM
Maximum PSI – 100 PSI
Do Not Run Dry – Seal damage will result from running dry. Impeller damage may also occur if run dry for an extended period.
Do Not Run With Flow Shutoff For Extended Periods – Running the pump with no flow for extended periods of time will result in excessive heat and pump failure. A continuous bypass is recommended for low flow applications
Additional information
| Weight | 25 lbs |
|---|---|
| Dimensions | 12 × 12 × 12 in |
