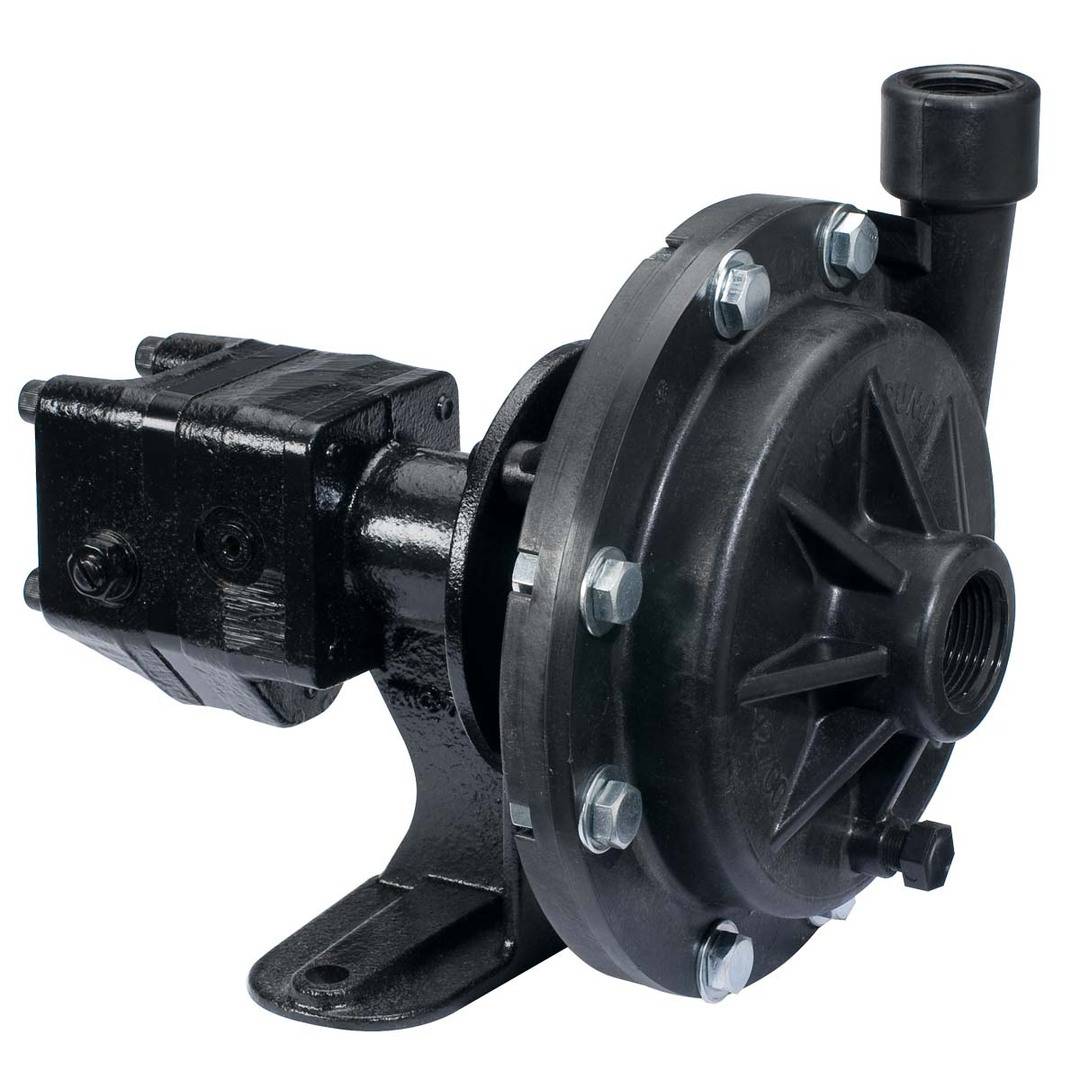

FMC-75-HYD-206

Description

Suction 1″ Discharge 3/4″
206 motor requires 7 GPM hydraulic flow on LS Closed and Open Center Systems
Integral Needle Valve bypasses up to 9 GPM on Open Center Systems

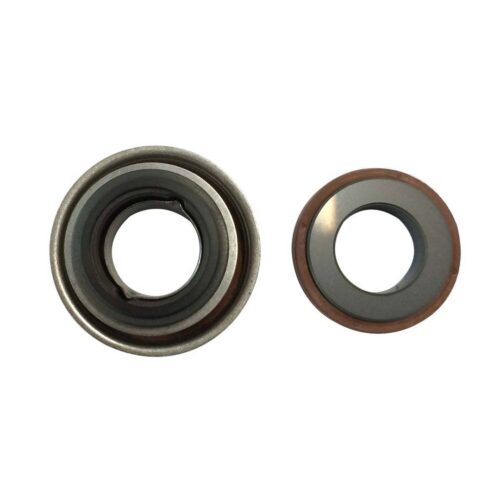

Standard with Viton Carbon/Ceramic Mechanical Seal
Polypropylene Corrosion Resistant Construction
Stainless Steel Shaft and Hardware
Maximum Gallons Per Minute – 27 GPM

Maximum PSI – 100 PSI

Maximum Fluid Temperature – 140 Degrees F

Do Not Run Dry – Seal damage will result from running dry. Impeller damage may also occur if run dry for an extended period.

Do Not Run With Flow Shutoff For Extended Periods – Running the pump with no flow for extended periods of time will result in excessive heat and pump failure. A continuous bypass is recommended for low flow applications
