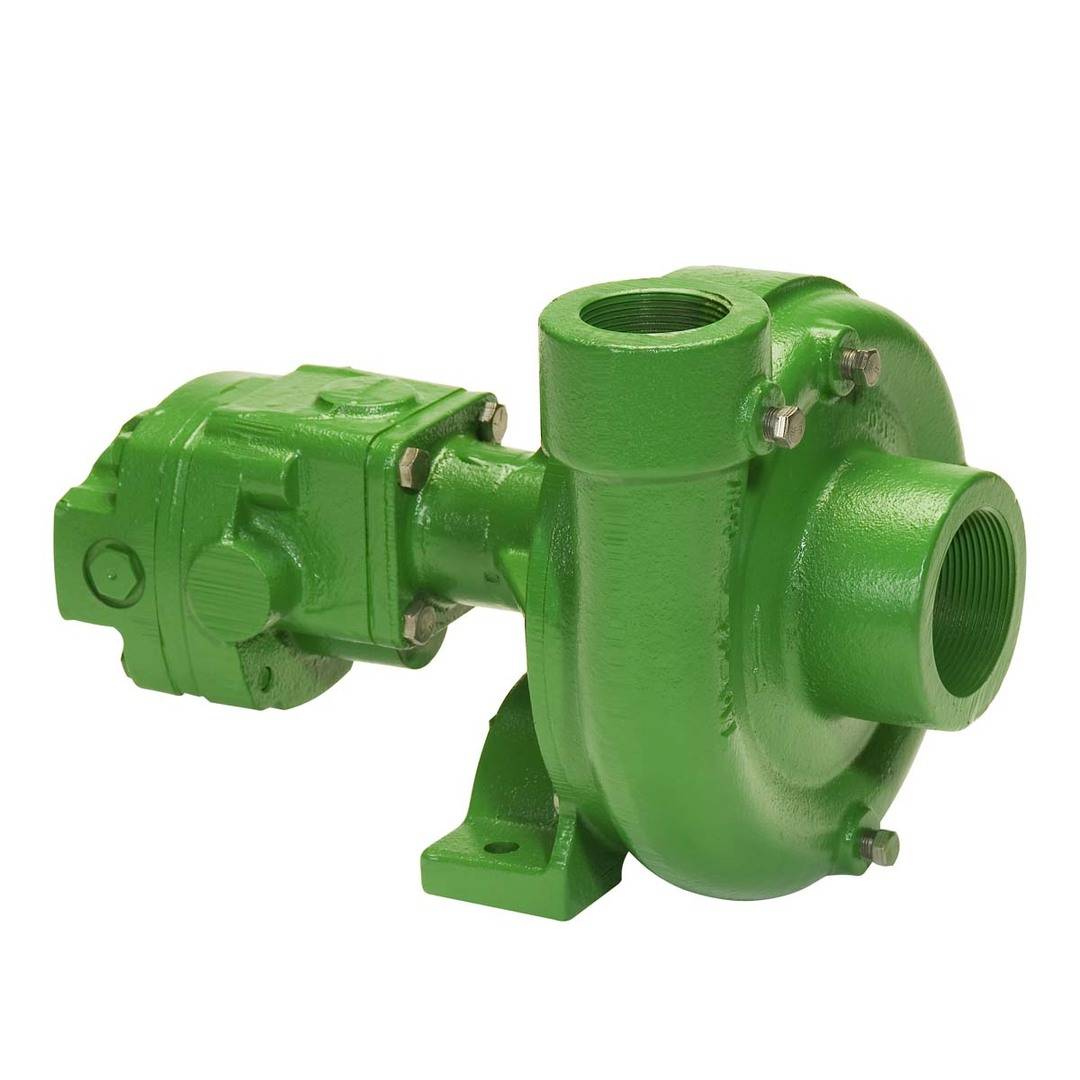

Ace Hydraulic Pump FMC-200-HYD-304

Description

Suction 2″ Discharge 1-1/2″
Recommended for use on the following Hydraulic Systems: Pressure Compensating Closed Center; Load Sensing or Pressure Flow Compensating Closed Center; Open Center from 10 to 20 GPM
304 motor requires 11 GPM hydraulic flow
Integral Needle Valve bypasses up to 9 GPM on Open Center Systems
Standard with Viton Carbon/Ceramic Mechanical Seal
Chemical Resistant Valox Impeller
Cast Iron Pump
Stainless Steel Shaft and Wear Ring
Maximum Gallons Per Minute – 200 GPM

Maximum PSI – 120 PSI

Do Not Run Dry – Seal damage will result from running dry. Impeller damage may also occur if run dry for an extended period.

Do Not Run With Flow Shutoff For Extended Periods – Running the pump with no flow for extended periods of time will result in excessive heat and pump failure. A continuous bypass is recommended for low flow applications
