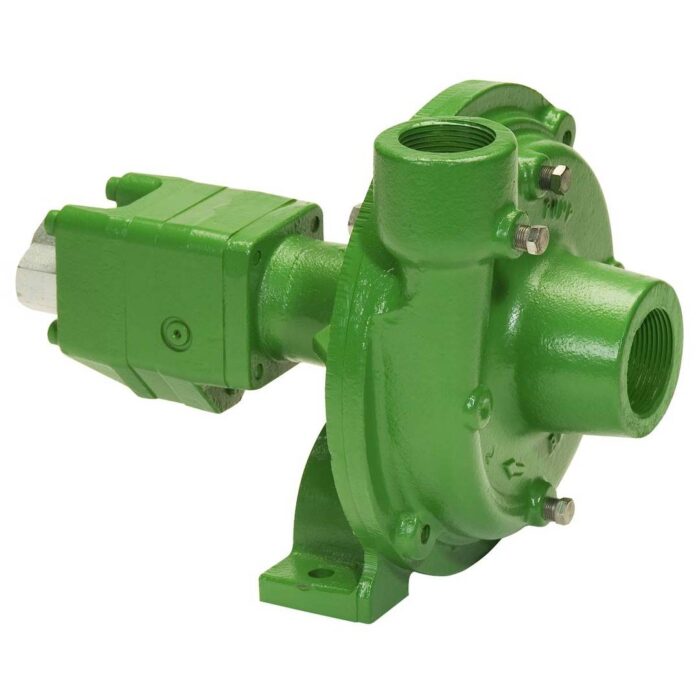

FMC-150-HYD-206

Description

Suction 1-1/2″ Discharge 1-1/4″
Recommended for use on the following Hydraulic Systems: Pressure Compensating Closed Center; Load Sensing or Pressure Flow Compensating Closed Center; Open Center up to 16 GPM
206 motor requires 7 GPM hydraulic flow
Integral Needle Valve bypasses up to 9 GPM on Open Center Systems

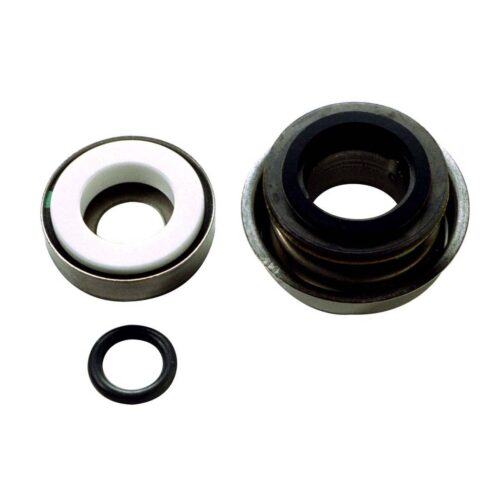

Standard with Viton Carbon/Ceramic Mechanical Seal

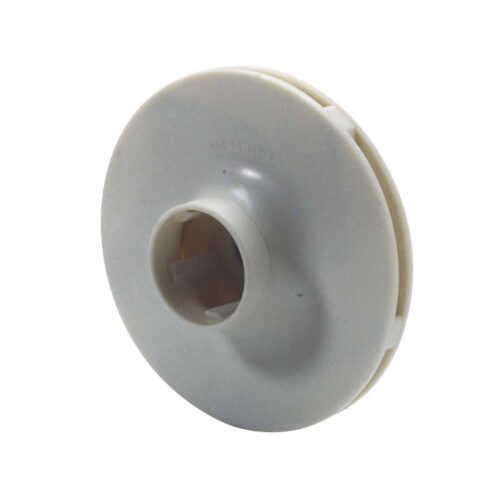

Chemical Resistant Valox Impeller
Cast Iron Pump
Stainless Steel Shaft and Wear Ring
Maximum Gallons Per Minute – 135 GPM

Maximum PSI – 120 PSI

Do Not Run Dry – Seal damage will result from running dry. Impeller damage may also occur if run dry for an extended period.

Do Not Run With Flow Shutoff For Extended Periods – Running the pump with no flow for extended periods of time will result in excessive heat and pump failure. A continuous bypass is recommended for low flow applications

PART SCHEMATICS
