9700B

Description

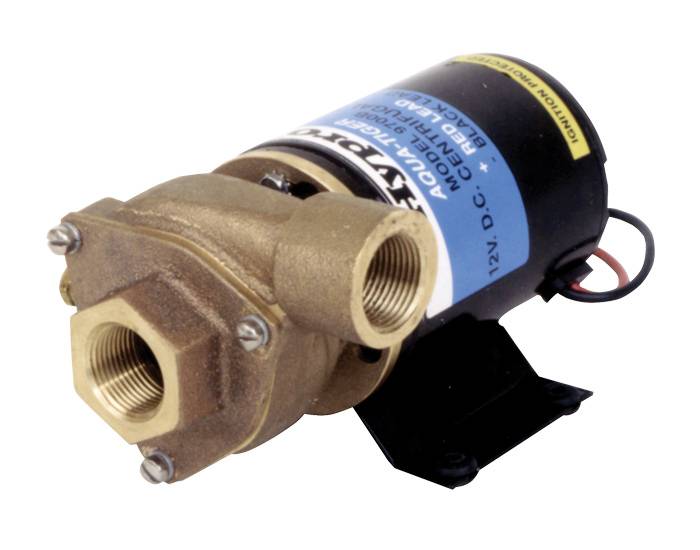

Hypro 9700B
The economical Aqua-Tiger centrifugal pumps are suitable for general pumping applications where a flooded intake is provided. Typical applications include livewell filling and circulation, and any other applications that do not require a self-priming pump.

The pump is closed-coupled to a 12 volt DC electric motor. The discharge can be rotated in 90 degree increments for ease in mounting. The fully enclosed ball bearing, ignition protected motor features a stainless steel shaft and permanent magnet design which has a low amperage draw.

MATERIALS
Housing: Bronze
Impeller: Bronze (9700B)
Seal: Viton (9700B)
Power – 12-Volt

Inlet/Outlet – 3/4″ NPT inlet, 3/4″ NPT outlet

Max Amp – 11

Gallons Per Minute – 19

Max PSI – 7
