9403C-1000

Description

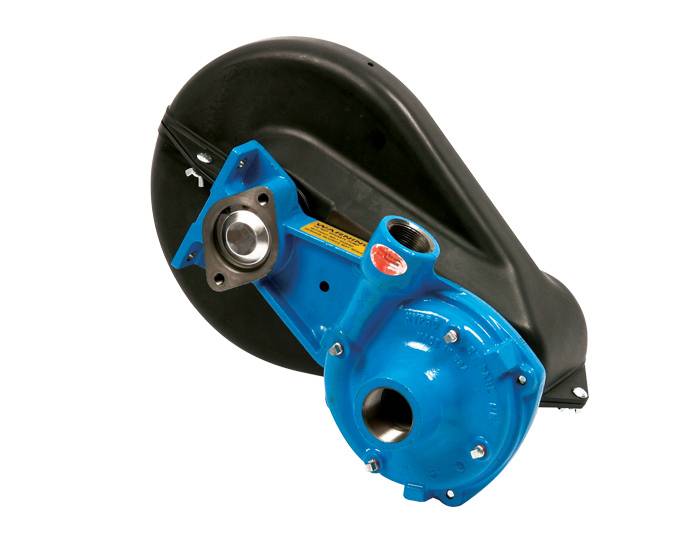

Belt Driven Centrifugal Pumps, Cast Iron
Pentair Hypro centrifugal pumps handle big, high-capacity spraying jobs with ease. Use them for spraying liquid fertilizers and other chemicals, including wettable powder slurries for weed control. Make short work of other jobs – filling nurse tanks, watering seed beds, and transferring liquids.

The broad, versatile line includes models with rugged housings of cast iron stand up to strong chemical herbicides.

KEY FEATURES

Drive: 12-groove belt
Spring-loaded belt tensioner
Port sizes: 1 1⁄2″ NPT inlet, 1 1⁄4″ NPT outlet
Max GPM: 140
Max PSI: 104
Max RPM: 1000
Shaft: 1-3/8″ Female (21-Spline)
Pump shaft rotation: CCW
MATERIALS

Housing: Cast Iron
Shaft: Stainless Steel standard
Wear Ring: Stainless Steel
Impeller: Nylon
Pump Seals: Viton/ceramic standard
