9306C-HM5C

Description

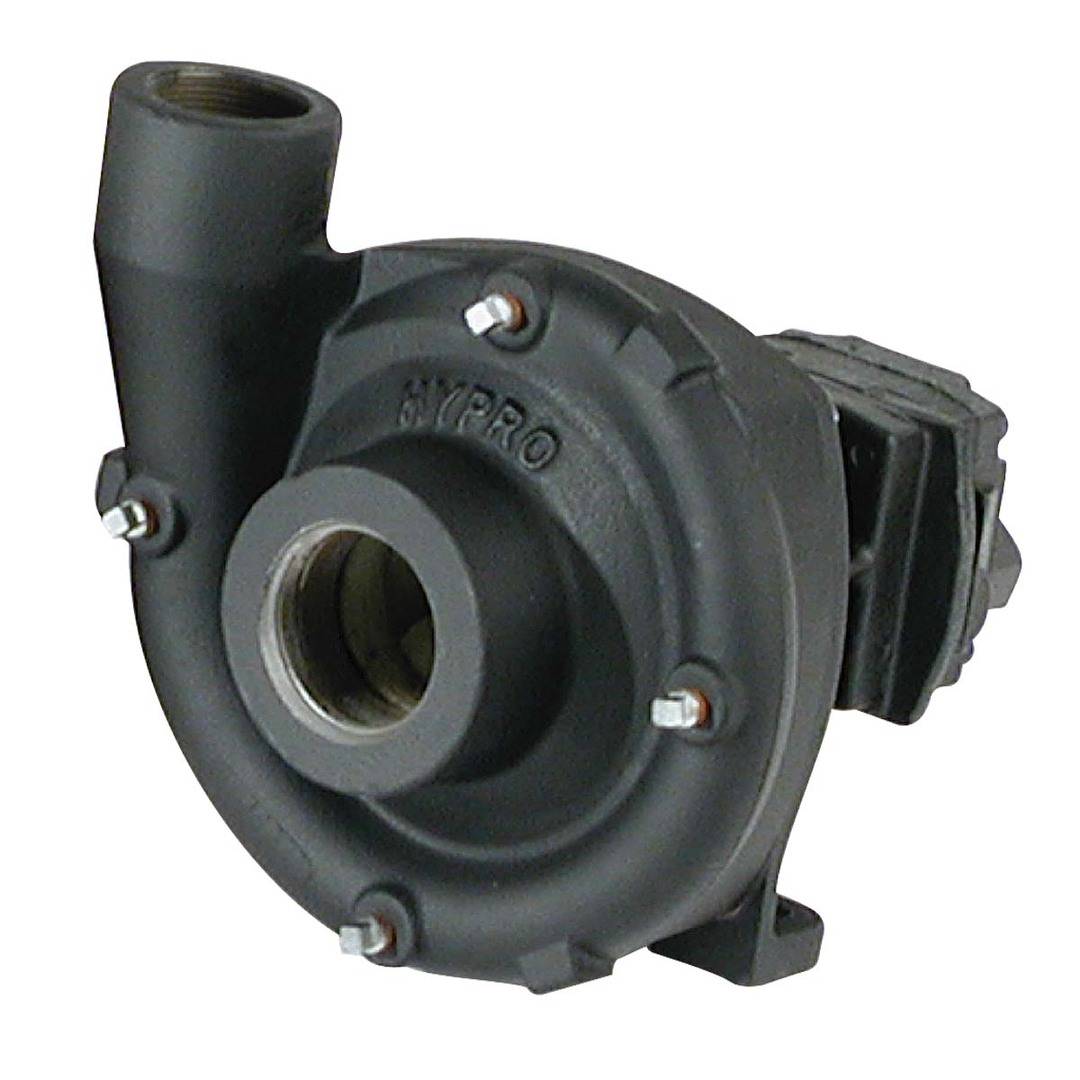

9306C-HM5C Hydraulically-Driven, Cast Iron Centrifugal Pumps
*John Deere Replacement Part Number: AN206042

*John Deere Machine this is used for: John Deere 4830 4710 4720 4730

Pentair Hypro centrifugal pumps are designed for agricultural and industrial spraying and transfer of a variety of fluids: water, insecticides, herbicides, wettable powders, emulsives, liquid fertilizers, etc.

Series 9300 hydraulic motor-driven centrifugal pumps provide smooth performance. They can be conveniently mounted on the tractor or sprayer, becoming part of the vehicle’s hydraulic system and freeing the PTO for other uses. The Hypro “close-coupled” design reduces the mounting space required, eliminating long shafts and couplers between the pump and motor.

The broad, versatile line includes models with rugged housings of cast iron that stand up to strong chemical herbicides.

KEY FEATURES

Hydraulic motor drive (for large open center systems)
Port sizes: 2″ NPT inlet, 1-1⁄2″ NPT outlet
Max Gallons Per Minute: 212
Max PSI: 140
MATERIALS
Housing: cast iron
Impeller: Cast Iron models – Nylon
Pump seals: Cast Iron models – Viton/ceramic standard
MOTOR CHARACTERISTICS
Motor: internal gear gerotor
Motor capacities: HM5C: 17 gpm
Max. motor psi: 3000 continuous duty
Hydraulic ports: 1⁄2″ NPT inlet, 3/4″ NPT outlet
Hydraulic motor seal: double-lip PTFE and case drain available
