9306C-HM5C-BU – HYPRO HYDRAULIC SOLUTION PUMP
$3,027.03 $1,513.52
9306C-HM5C-BU
FLANGE INLET/OUTLET w/ SILICON CARBIDE SEAL
Description

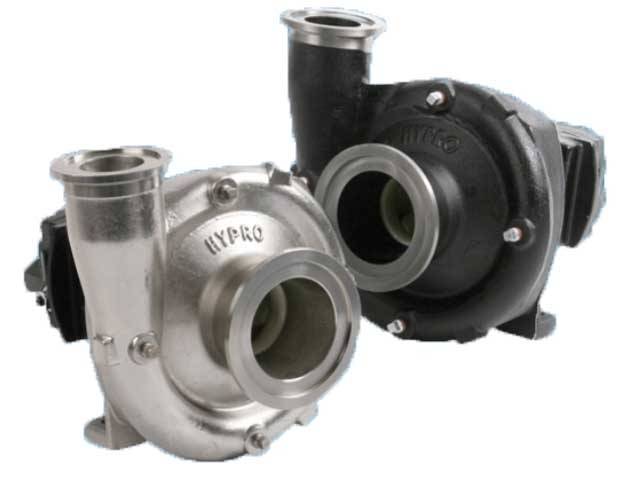

9306C-HM1C-BU Hydraulically-Driven, Cast Iron Centrifugal Pumps
Pentair Hypro centrifugal pumps are designed for agricultural and industrial spraying and transfer of a variety of fluids: water, insecticides, herbicides, wettable powders, emulsives, liquid fertilizers, etc.
Series 9300 hydraulic motor-driven centrifugal pumps provide smooth performance. They can be conveniently mounted on the tractor or sprayer, becoming part of the vehicle’s hydraulic system and freeing the PTO for other uses. The Hypro “close-coupled” design reduces the mounting space required, eliminating long shafts and couplers between the pump and motor.
The broad, versatile line includes models with rugged housings of cast iron that stand up to strong chemical herbicides.
KEY FEATURES
Hydraulic motor drive (for open/closed center systems)
Port sizes: 220 Series Flange Inlet/Outlet
Max Gallons Per Minute: 207
Max PSI: 130
MATERIALS
Housing: cast iron

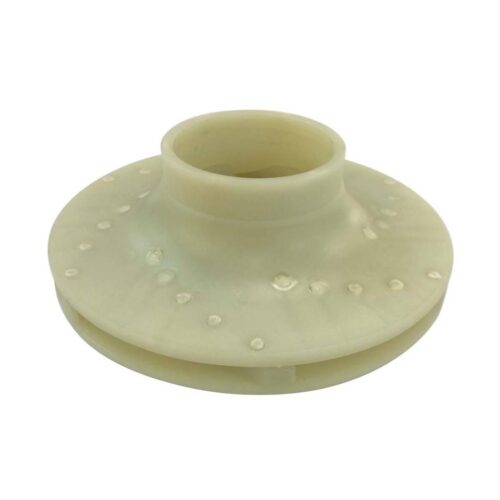

Impeller: Cast Iron models – Nylon
Pump seals: Cast Iron models – Life Guard silicon carbide
MOTOR CHARACTERISTICS
Motor: internal gear gerotor
Motor capacities: HM1C: 13 gpm
Max. motor psi: 3000 continuous duty
Hydraulic ports: 1⁄2″ NPT inlet, 3/4″ NPT outlet
Hydraulic motor seal: double-lip PTFE and case drain available

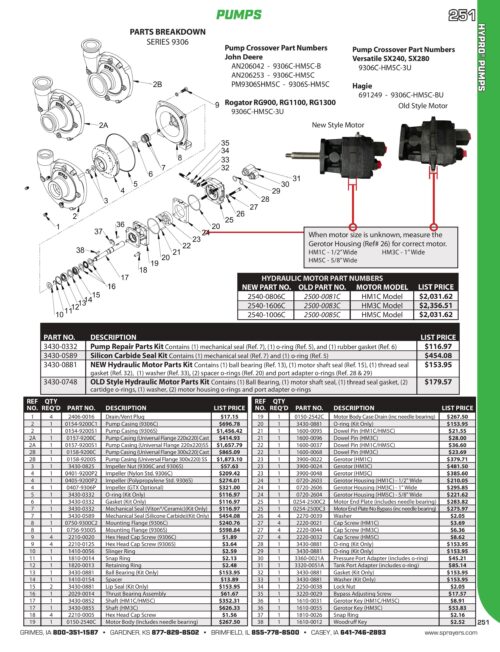

PART SCHEMATICS
Additional information
| Weight | 50 lbs |
|---|---|
| Dimensions | 18 × 18 × 10 in |
