9263S-CR

Description

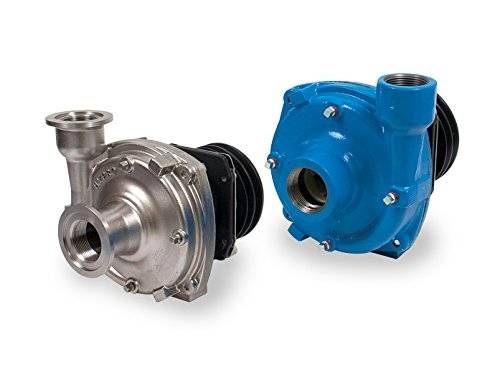

9263S-CR Clutch-Driven Centrifugal Pumps, Stainless Steel
Pentair Hypro centrifugal pumps handle big, high-capacity spraying jobs with ease. Use them for spraying liquid fertilizers and other chemicals, including wettable powder slurries for weed control. Make short work of other jobs – filling nurse tanks, watering seed beds, and transferring liquids.

The broad, versatile line includes models with rugged housings of stainless steel. Stainless steel pumps are ideal for use with Roundup® or other acid applications.
KEY FEATURES

Pedestal mount with DC clutch drive
Port sizes: 1-1⁄2″ NPT inlet, 1-1⁄4″ NPT outlet
Shaft: 5⁄8″ solid
Pump shaft rotation: CW (Clockwise)
MATERIALS

Housing: 316 stainless steel
Impeller: Stainless Steel models – polypropylene standard
Pump seals: Stainless Steel models – Life Guard silicon carbide standard
MAXIMUM FLOW: 140 gpm

MAXIMUM PRESSURE: 114 psi/

MAXIMUM SPEED: 5000 rpm

MAXIMUM TEMPERATURE: 140°F
