9205C

Description

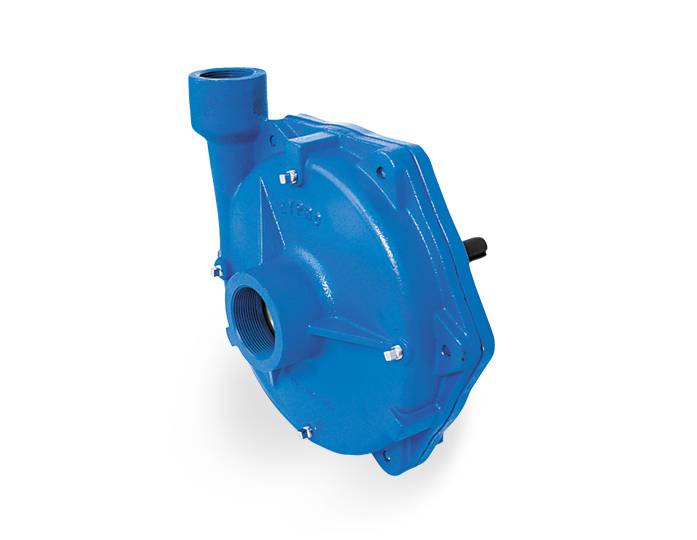

Pedestal Mount, Cast Iron Centrifugal Pump, 180 GPM max
This pedestal mount, direct drive centrifugal pump achieves up to 190 gpm (719 lpm) and 190 psi (13.1 bar). The series includes models 9205C.

Pentair Hypro centrifugal pumps handle big, high-capacity spraying jobs with ease. Use them for spraying liquid fertilizers and other chemicals, including wettable powder slurries for weed control. Make short work of other jobs – filling nurse tanks, watering seed beds, and transferring liquids.

The broad, versatile line includes models with rugged housings of cast iron that stand up to strong chemical herbicides.

KEY FEATURES
Pedestal mount, direct drive
Port sizes: 2″ NPT inlet, 1-1⁄2″ NPT outlet
Shaft: 7⁄8″ solid keyed
Pump shaft rotation: CCW
MATERIALS

Housing: cast iron
Impeller: Nylon
Pump seals: Viton/ceramic standard
MAXIMUM FLOW: 180 gpm/681 lpm (free flow)

MAXIMUM PRESSURE: 196 psi/13.5 bar (Shut off)

MAXIMUM SPEED: 4200 rpm

MAXIMUM TEMPERATURE: 140°F/60°C
