9205C-SP

Description

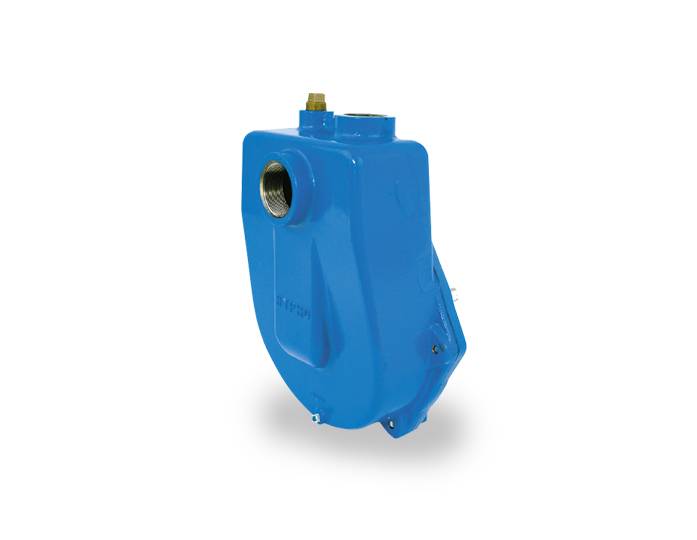

Pedestal Mount, Cast Iron Self-Priming Centrifugal Pumps, 160 GPM max
This pedestal mount, direct drive centrifugal pump achieves up to 160 gpm (601 lpm) and 145 psi (10.0 bar). The series includes models 9205C-SP

Pentair Hypro self-priming centrifugal pumps handle big, high-capacity spraying jobs with ease. They offer outstanding performance without the need for a flooded suction inlet. The pumps are ideal for sprayers that require pump mounting above the carrier tank. High pressure capabilities allow the pump to be used for both tank filling and spraying.

KEY FEATURES
Pedestal mount, direct drive
Port sizes: 2″ NPT inlet, 2″ NPT outlet
Shaft: 7⁄8″ solid keyed
Pump shaft rotation: CCW
MATERIALS

Housing: cast iron
Impeller: Nylon
Pump seals: Viton/ceramic standard
MAXIMUM FLOW: 160 gpm/605 lpm (free flow)

MAXIMUM PRESSURE: 145 psi/10 bar (Shut off)

MAXIMUM SPEED: 3800 rpm

MAXIMUM TEMPERATURE: 140°F/60°C
