9028C-O

Description

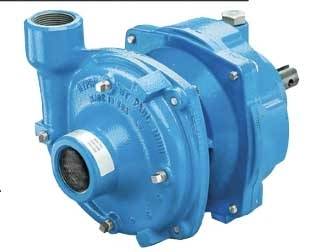

This planetary oil-bath gear driven pump achieves up to 110 gpm and 75 psi

TO LUBRICATE – Fill Gearcase with 6 oz. of Phillube SAE 80W90 or equivalent. Do NOT Overfill

KEY FEATURES
Port Sizes: 1-1/2″ NPT Inlet, 1-1/4″ NPT Outlet
Pump shaft rotation: CCW
Weight: 44 lbs
1-3/4″ 20 spline with locking collar & mounting clips
MATERIALS

Housing: cast iron
Impeller: nylon
Pump seals: Viton/ceramic standard
Max Flow: 110 GPM (Free Flow)

Max Pressure: 75 PSI (Shut-Off)

Max Speed: 1000 RPM (1000 RPM PTO)

Max Fluid Temperature: 140°F
