9006C-O
$2,512.74 $1,256.37
7 in stock
9006C-O
7 in stock
Description
*John Deere Replacement Part Number: PM9006CO

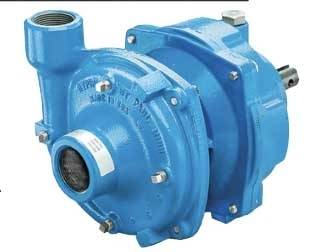

9006C-O Series – Gear Driven, Cast Iron Centrifugal Pumps
This planetary oil-bath gear driven pump achieves up to 117 gpm and 78 psi
TO LUBRICATE – Fill Gearcase with 6 oz. of Phillube SAE 80W90 or equivalent. Do NOT Overfill
KEY FEATURES
Port Sizes: 1-1/2″ NPT Inlet, 1-1/4″ NPT Outlet
Pump shaft rotation: CCW
Weight: 44 lbs
1-3/8″ PTO hub with locking collar & mount clips
MATERIALS
Housing: cast iron
Impeller: nylon
Pump seals: Viton/ceramic standard
Max Flow: 117 GPM (Free Flow)
Max Pressure: 78 PSI (Shut-Off)
Max Speed: 600 RPM (540 RPM PTO)
Max Fluid Temperature: 140°F
Additional information
| Weight | 44 lbs |
|---|---|
| Dimensions | 12 × 12 × 12 in |
