7700XL

Description

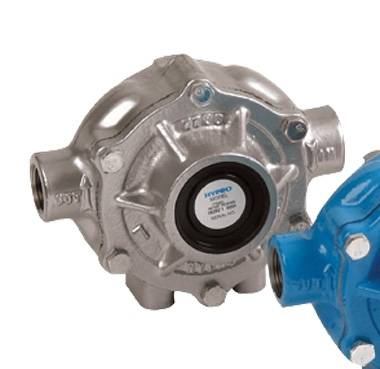

Model 7700 7-Roller Series – Cast Iron – Clockwise Rotation
The 7700 series, 7 roller, pump achieves up to 22.1 gpm and 200 psi

KEY FEATURES

Super Rollers standard provide premium wear life
Viton® seals offer the best overall chemical resistance
Clockwise shaft roation available for coupling to gas engines
15⁄16″ solid stainless steel shaft for corrosion resistance
MATERIALS: Cast Iron pumps lasted to 140 hours before failure

MAX FLOW: 14.2 gpm at 540 rpm, 22.1 gpm at 800 rpm
MAX PRESSURE: Continuous 100 psi, Intermittent 200 psi

MAX FLUID TEMPERATURE: 140°F

MAX RATE SPEED: 800 rpm

PORT SIZE: 3/4″ NPT

PUMP SHAFT: 15/16″ solid stainless steel

PUMP SHAFT ROTATION: CW

HOUSING and ROTOR: Cast Iron (C)

ROLLERS: Super Rollers standard

SHAFT SEALS: Viton® standard

WEIGHT: 14 lbs
