7700XL-R
$1,781.39
1 in stock
7700XL-R
1 in stock
Description

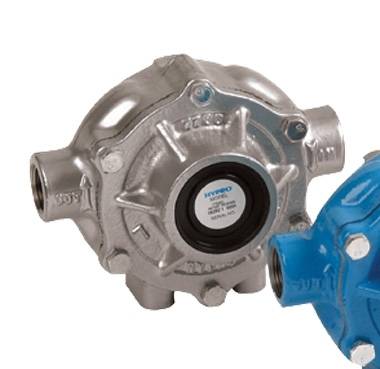

Model 7700 7-Roller Series – SilverCast XL – Clockwise Rotation
The 7700 series, 7 roller, pump achieves up to 22.1 gpm and 200 psi
KEY FEATURES
Super Rollers standard provide premium wear life
Viton® seals offer the best overall chemical resistance
Clockwise shaft roation available for coupling to gas engines
15⁄16″ solid stainless steel shaft for corrosion resistance
MATERIALS: Silver Series XL pumps ran over 1000 hours and still met new pump specs!
MAX FLOW: 14.2 gpm at 540 rpm, 22.1 gpm at 800 rpm
MAX PRESSURE: Continuous 100 psi, Intermittent 200 psi
MAX FLUID TEMPERATURE: 140°F
MAX RATE SPEED: 800 rpm
PORT SIZE: 3/4″ NPT
PUMP SHAFT: 15/16″ solid stainless steel
PUMP SHAFT ROTATION: CW
HOUSING and ROTOR: Silvercast (XL)
ROLLERS: Super Rollers standard
SHAFT SEALS: Viton® standard
WEIGHT: 14 lbs
Additional information
| Weight | 14 lbs |
|---|---|
| Dimensions | 12 × 12 × 12 in |
