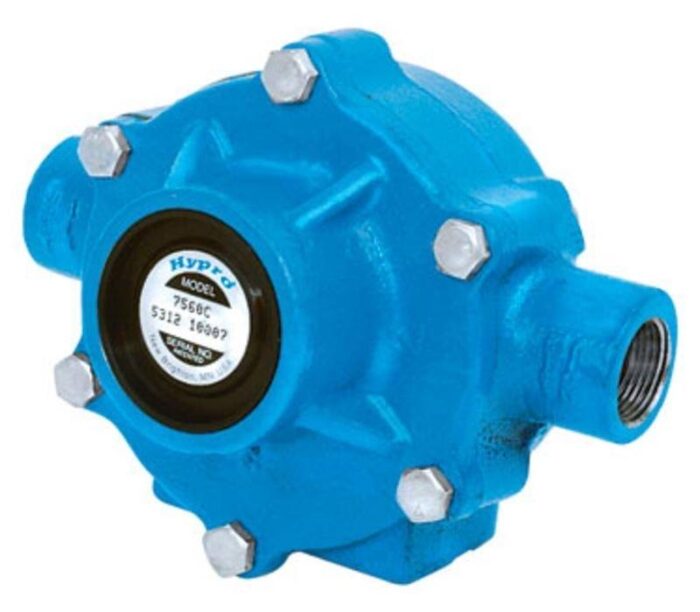

7560C

Description

Model 7560 6-Roller Series – Cast Iron
The 7560 series, 8 roller, pump achieves up to 22.5 gpm and 300 psi

KEY FEATURES

Super Rollers standard provide premium wear life
Viton® seals offer the best overall chemical resistance
Counter-clockwise shaft rotation is available for PTO adaption
15/16″ solid stainless steel shaft resists corrosion
MAX FLOW: 12 gpm at 540 rpm, 22.5 gpm at 1000 rpm

MAX PRESSURE: Continuous 100 psi / Intermittent 300 psi

MAX FLUID TEMPERATURE: 140°F

MAX RATE SPEED: 1000 rpm

PORT SIZE: 3/4″ NPT

PUMP SHAFT: 15/16″ solid stainless steel

PUMP SHAFT ROTATION: CCW

HOUSING and ROTOR: Cast Iron (C)

ROLLERS: Super Rollers standard

SHAFT SEALS: Viton® standard

WEIGHT: 13 lbs
