7560C-R
$574.11 $287.06
1 in stock
7560C-R
1 in stock
Description

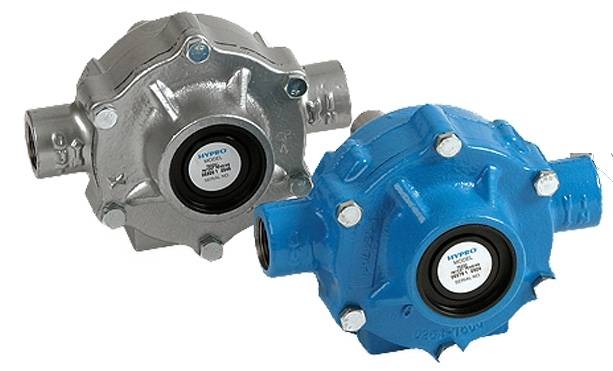

Model 7560 6-Roller Series – Cast Iron – Clockwise Rotation
The 7560 series, 8 roller, pump achieves up to 22.5 gpm and 300 psi
KEY FEATURES
Super Rollers standard provide premium wear life
Viton® seals offer the best overall chemical resistance
Clockwise shaft rotation available for coupling to gas engines
15/16″ solid stainless steel shaft resists corrosion
MAX FLOW: 12 gpm at 540 rpm, 22.5 gpm at 1000 rpm
MAX PRESSURE: Continuous 100 psi / Intermittent 300 psi
MAX FLUID TEMPERATURE: 140°F
MAX RATE SPEED: 1000 rpm
PORT SIZE: 3/4″ NPT
PUMP SHAFT: 15/16″ solid stainless steel
PUMP SHAFT ROTATION: CW
HOUSING and ROTOR: Cast Iron (C)
ROLLERS: Super Rollers standard
SHAFT SEALS: Viton® standard
WEIGHT: 13 lbs
Additional information
| Weight | 13 lbs |
|---|---|
| Dimensions | 12 × 12 × 12 in |
