6500XL

Description

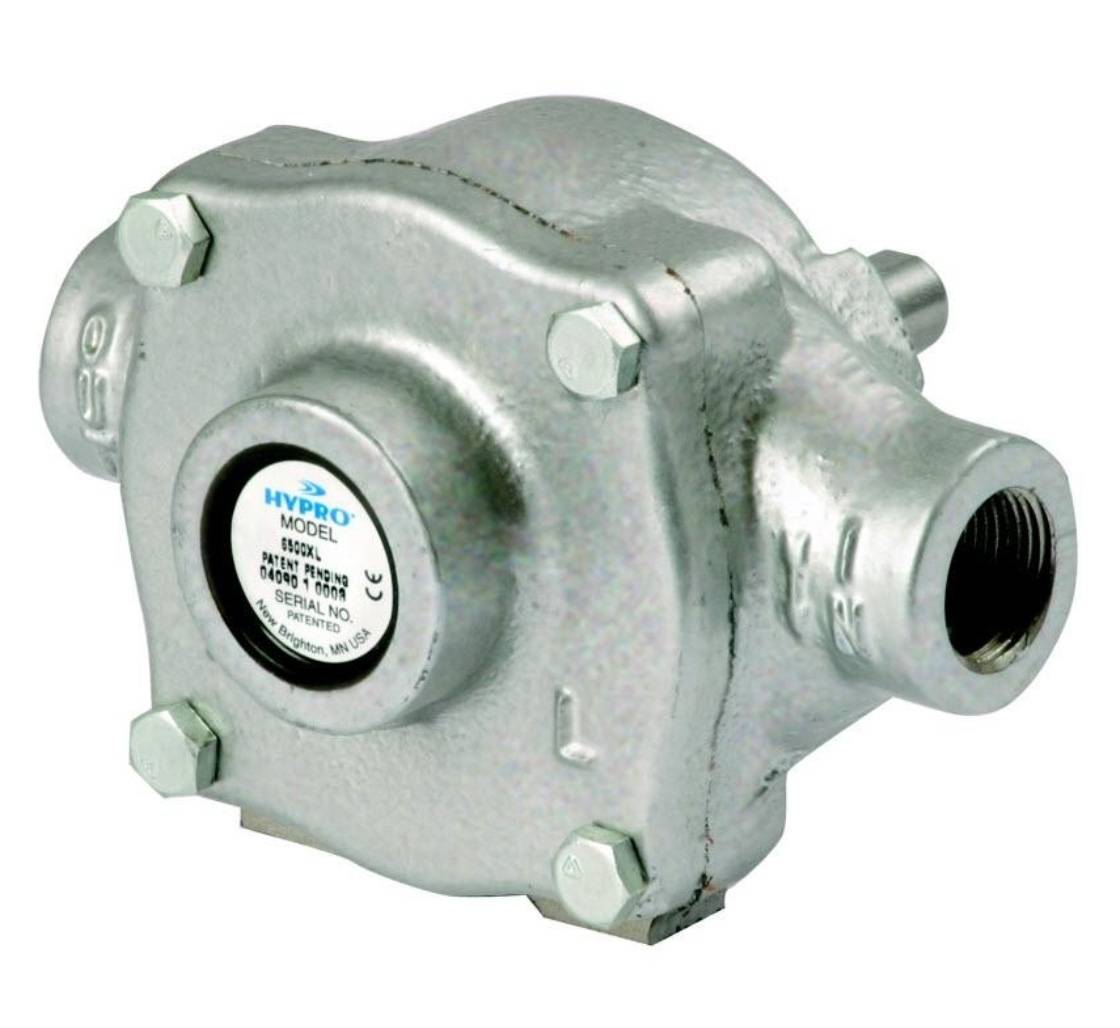

Model 6500 6-Roller Series – Silvercast XL
The 6500 series, 6 roller, pump achieves up to 21.8 gpm and 300 psi

KEY FEATURES

Super Rollers standard provide premium wear life
Viton® seals offer the best overall chemical resistance
Counter-clockwise shaft rotation is available for PTO adaption
5/8″ solid stainless steel shaft resists corrosion
MATERIALS: Silver Series XL pumps ran over 1000 hours and still met new pump specs!

MAX FLOW: 21.8 gpm at 1200 rpm

MAX PRESSURE: Continuous 100-150 psi, Intermittent 300 psi

MAX RATED SPEED: 1200 rpm

MAX FLUID TEMPERATURE: 140°F

PORT SIZE: 3/4″ NPT

PUMP SHAFT: 5/8″ solid stainless steel

PUMP SHAFT ROTATION: CCW

HOUSING and ROTOR: Silvercast (XL)

ROLLERS: Super Rollers standard

SHAFT SEALS: Viton® standard

WEIGHT: 9 lbs.
