4001C

Description

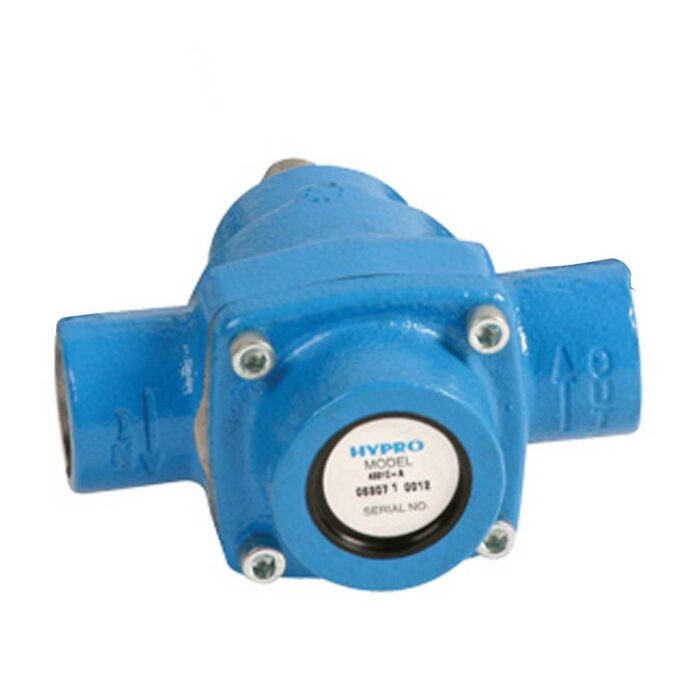

Model 4001 4-Roller Series – Cast Iron
The 4001 series, 4-roller, pump achieves up to 9.1 gpm and 150 psi

KEY FEATURES

Super Rollers standard provide premium wear life with options available in Poly and PTFE for superior chemical resistance
Viton® seals offer the best overall chemical resistance
Counter-clockwise shaft rotation is available for PTO adaption
5/8″ solid stainless steel shaft resists corrosion
MATERIALS: Cast Iron pumps lasted to 140 hours before failure

MAX FLOW: 9.1 gpm at 1800 rpm

MAX PRESSURE: Continuous 100 psi, Intermittent 150 psi

MAX FLUID TEMPERATURE: 140°F

MAX RATED SPEED: 1800 rpm

PORT SIZE: 3/4″ NPT

PUMP SHAFT: 5/8″ solid stainless steel

PUMP SHAFT ROTATION: CCW

HOUSING and ROTOR: Cast Iron (C)

ROLLERS: Super Rollers standard

SHAFT SEALS: Viton standard

WEIGHT: 5 lbs
