1700C

Description

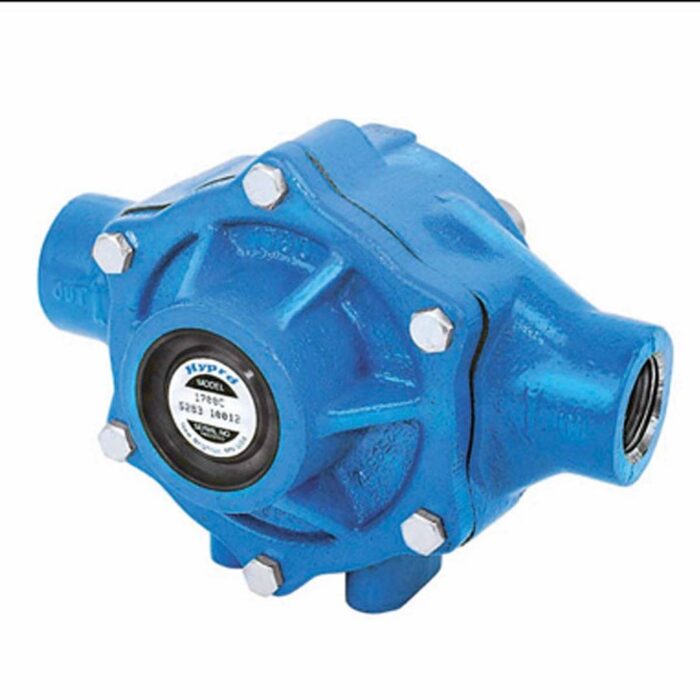

Model 1700 5-Roller Series -Cast Iron
The 1700 series, 5 roller, pump achieves up to 45 gpm and 200 psi

KEY FEATURES

Super Rollers standard provide premium wear life with options available in Poly and PTFE for superior chemical resistance
Viton® seals offer the best overall chemical resistance
Counter-clockwise shaft rotation is available for PTO adaption
15⁄16″ solid stainless steel shaft for corrosion resistance
MATERIALS: Cast Iron pumps lasted to 140 hours before failure

MAX FLOW: 25 GPM at 540 RPM, 45 GPM at 1000 RPM

MAX PRESSURE: 200 PSI

MAX FLUID TEMPERATURE: 140°F

MAX RATED SPEED: 1000 rpm

PORT SIZE: 1″

PUMP SHAFT: 15/16″ solid stainless steel

PUMP SHAFT ROTATION: CCW

HOUSING and ROTOR: Cast Iron (C)

ROLLERS: Super rollers standard

SHAFT SEALS: Viton® standard

WEIGHT: 19 lbs.
