1502C-R

Description

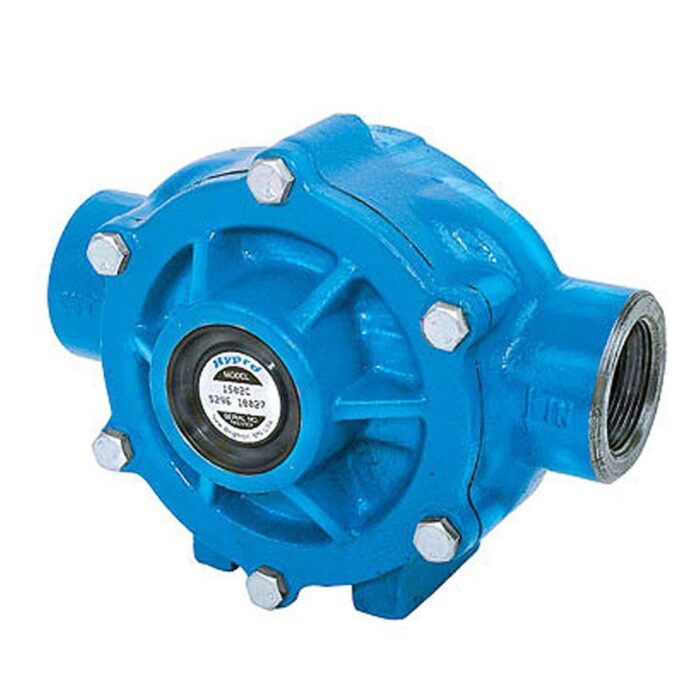

Model 1502 6-Roller Series – Cast Iron – Reverse Rotation
The 1502 series, 6 roller, pump achieves up to 62.1 GPM and 150 PSI.

KEY FEATURES

Super Rollers standard provide premium wear life
Viton® seals offer the best overall chemical resistance
Clockwise shaft rotation directly couples to gas engines and electric motors
15⁄16″ solid stainless steel shaft for corrosion resistance
MATERIALS: Cast Iron pumps lasted to 140 hours before failure

MAX FLOW: 33.1 GPM at 540 RPM, 62.1 GPM at 1000 RPM

MAX PRESSURE: Continuous 100 PSI, Intermittent 150 PSI

MAX FLUID TEMPERATURE: 140°F

MAX RATED SPEED: 1000 rpm

PORT SIZE: 1 1/2″

PUMP SHAFT: 15/16″ solid stainless steel

PUMP SHAFT ROTATION: CW

HOUSING and ROTOR: Cast Iron (C)

ROLLERS: Super rollers standard

SHAFT SEALS: Viton® standard

WEIGHT: 30 lbs.
