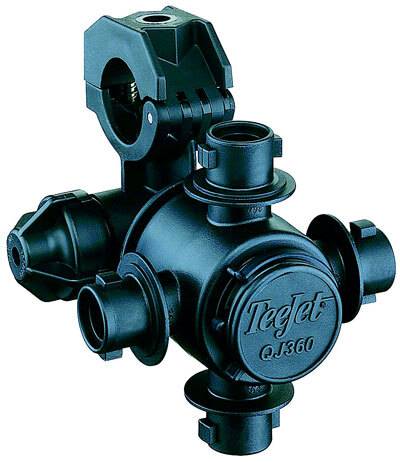

QJ360C / Teejet Wet Boom Nozzle Body – 3/4″ Pipe – 4 Outlet
$28.78 $14.39
13 in stock
QJ364C Nozzle Body for Wet Boom – 4 Outlet
13 in stock
Description
QJ360C Nozzle Body Series for Wet Booms
Available with either 3, 4 or 5 spray positions for easy change of spray tips or quick boom flushing.
Positive shutoff between each position. n Automatic spray alignment using flat fan spray tips.
Maximum operating pressure of 300 PSI (20 bar). n Available in 25 mm, 1/29, 3/49 or 19 pipe connections.
Includes ChemSaver diaphragm check valve for drip-free shutoff. Standard diaphragm opens at 10 PSI.
Standard EPDM diaphragm
Flow Rate: 2.25 GPM at 5 PSI pressure drop, 3.18 GPM with 10 PSI pressure drop.
Mounts to a 3/89 (9.5 mm) hole drilled in pipe or tubing.
Molded hex socket in upper clamp for attaching to flat surfaces. Accepts 5/16″ or M8 bolt.
Hinged upper clamp reduces assembly time and fits inside common boom channels.
Additional information
| Weight | .35 lbs |
|---|---|
| Dimensions | 6 × 4 × 4 in |
