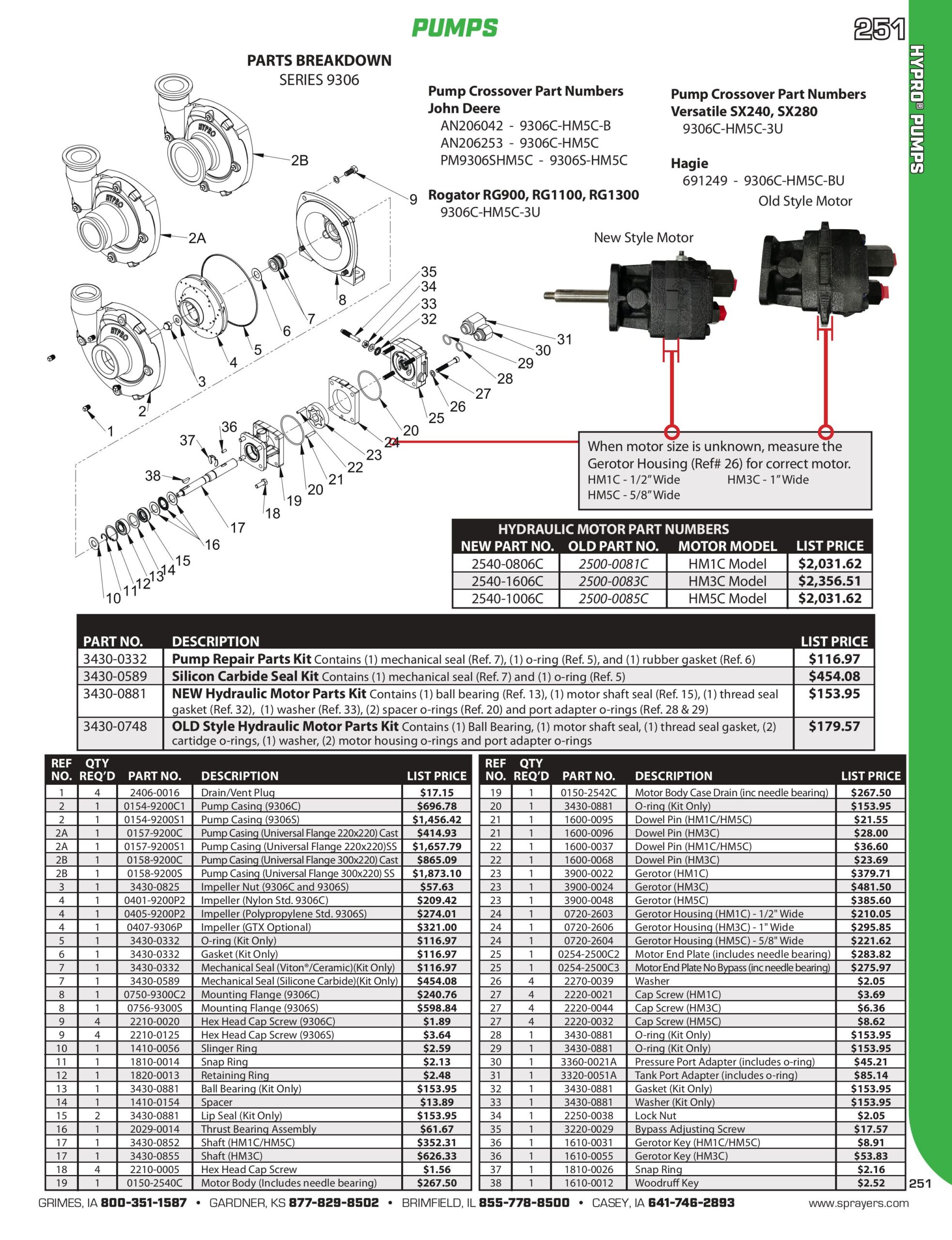

(Ref #2) 0154-9200C1 Cast Threaded Pump Casing, (Ref #2a) 0157-9200C Cast Flange Pump Casing 220×220, (Ref #3) 3430-0825 Impeller Nut, (Ref #4) 0401-9200P2 Standard Impeller, (Ref #5,6,7) 3430-0332 Mechanical Seal/O-Ring/Gasket Kit (STD), (Ref #5,6,7) 3430-0589 Mechanical Seal/O-Ring/Gasket Kit (Silicon Carbide), (Ref #8) 0750-9300C2 Mounting Flange, (Ref #9) 2210-0020 (QTY 4) Hex Head Cap Screw, (Ref #10) 1410-0056 Slinger Ring, (Ref #11) 1810-0014 Snap Ring, (Ref #12) 1820-0013 Retaining Ring, (Ref #13,15,20) 3430-0881 Motor Kit – Ball Bearing/Lip Seal/O-Ring, (Ref #14) 1410-0154 Spacer, (Ref #16) 2029-0014 Thrust Bearing Assembly, (Ref #17) 3430-0852 Shaft (HM1C/HM5C), (Ref #17) 3430-0855 Shaft (HM3C), (Ref #18) 2210-0005 Hex Head Cap Screw, (Ref #37) 1810-0026 Snap Ring
