9305C-HM3C

Description

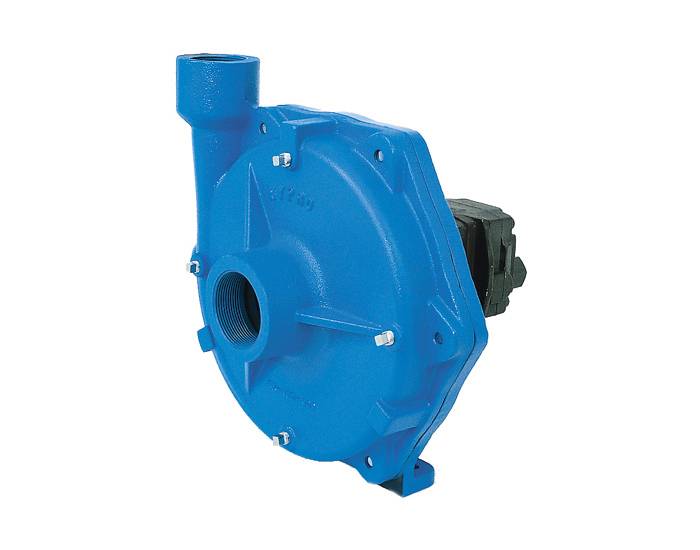

9305C-HM3C – Hydraulically-Driven, Cast Iron Centrifugal Pump
Pentair Hypro centrifugal pumps are designed for agricultural and industrial spraying and transfer of a variety of fluids: water, insecticides, herbicides, wettable powders, emulsives, liquid fertilizers, etc.

Hypro Series 9300 hydraulic motor-driven centrifugal pumps provide smooth performance. They can be conveniently mounted on the tractor or sprayer, becoming part of the vehicle’s hydraulic system and freeing the PTO for other uses. The Hypro “close-coupled” design reduces the mounting space required, eliminating long shafts and couplers between the pump and motor.

The broad, versatile line includes models with rugged housings of cast iron that stand up to strong chemical herbicides.

*Machine this is used for: CHN (Miller) SPRAYERS

KEY FEATURES
Inlet/Outlet: 2″ Female Pipe Thread Inlet; 1-1/2″ Female Pipe Thread Outlet
Motor: HM3C – 19GPM Hydraulic Motor for Large Open Center Systems; internal gear gerotor
Max. motor psi: 3000 continuous duty
Hydraulic ports: 1⁄2″ NPT inlet, 3/4″ NPT outlet
Hydraulic motor seal: double-lip PTFE

MATERIALS

Housing: cast iron
Impeller: glass-filled nylon
Pump seals: Viton/ceramic standard
