4101C-H

$441.90 $220.95

4101C-H

Description

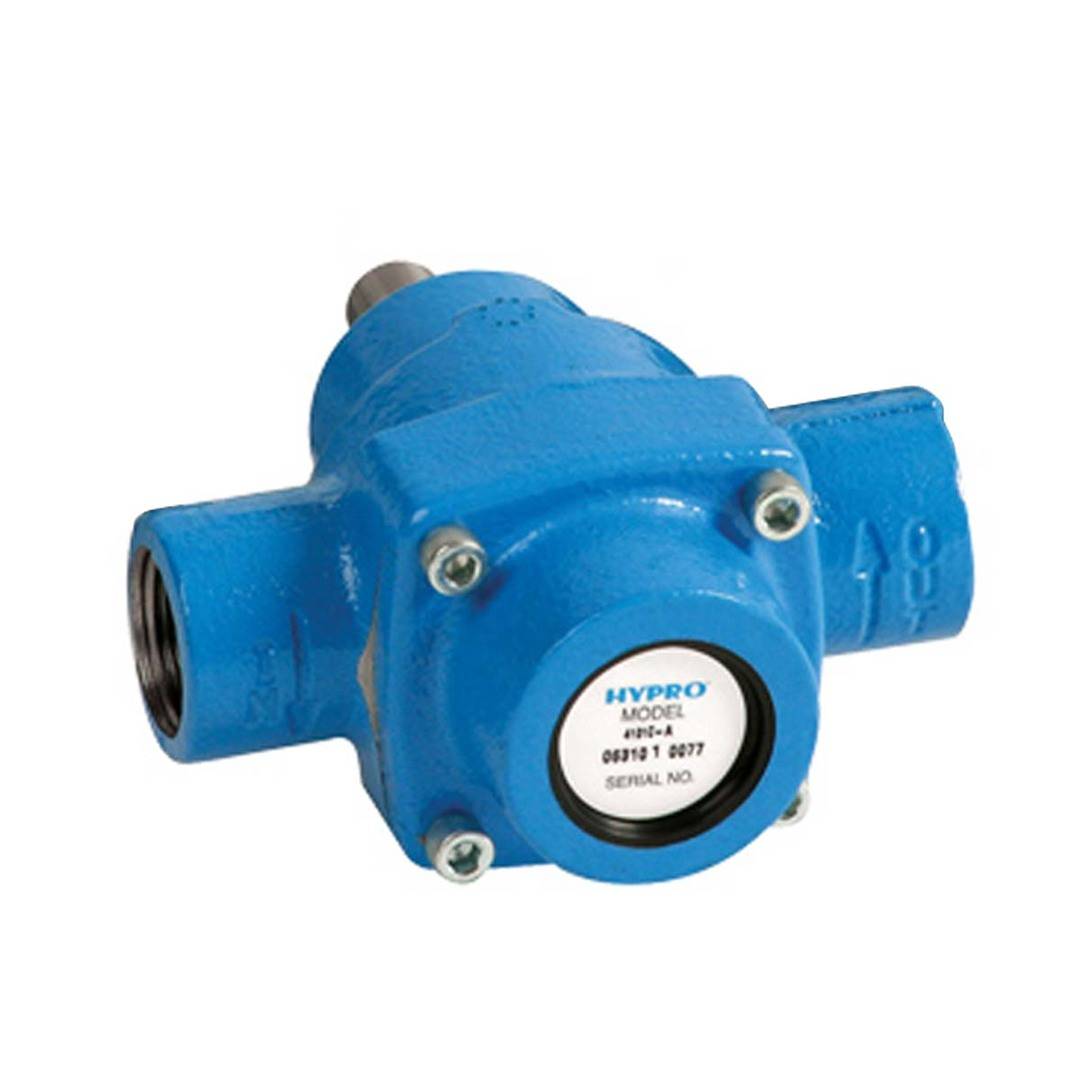

Model 4101 4-Roller Series – Cast Iron – Hollow Shaft
The 4101 series, 4 roller, pump achieves up to 7 gpm and 150 psi

KEY FEATURES

Super Rollers standard provide premium wear life
VitonĀ® seals offer the best overall chemical resistance
Counter-clockwise shaft rotation is available for PTO adaption
MATERIALS: Cast Iron pumps lasted to 140 hours before failure

MAX FLOW: 7 gpm at 2600 rpm

MAX PRESSURE: Continuous 100 psi, Intermittent 150 psi/10.3 bar

MAX RATED SPEED: 2600 rpm

MAX FLUID TEMPERATURE: 140°F

PORT SIZE: 3/4″ NPT

PUMP SHAFT: 1/2″ Hollow Shaft

PUMP SHAFT ROTATION: CCW

HOUSING and ROTOR: Cast Iron (C)

ROLLERS: Super Rollersā„¢ standard

SHAFT SEALS: Viton standard

WEIGHT: 5 lbs

Additional information

Weight 5 lbs
Dimensions 12 × 12 × 12 in
