9303S-HM4C-SP

Description

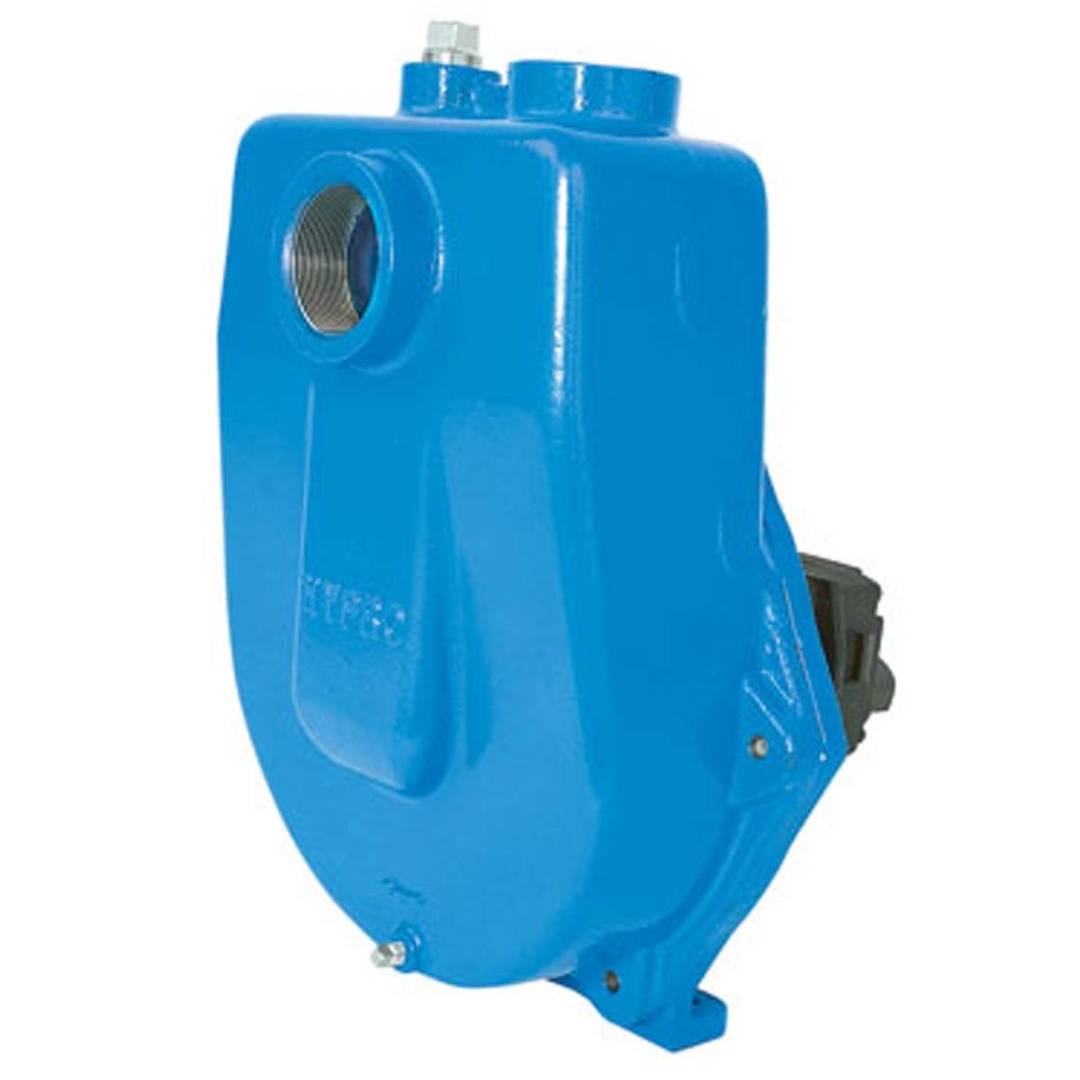

9303S-HM4C-SP Hydraulically-Driven Centrifugal Pumps, Stainless Steel Self-Priming
Hypro self-priming centrifugal pumps handle big, high-capacity spraying jobs and tank filling with ease. They offer outstanding performance without the need for a flooded suction inlet. The pumps are ideal for sprayers that require pump mounting above the carrier tank.

The broad, versatile line includes models with rugged housings of stainless steel that stand up to strong chemical herbicides. Stainless steel pumps are ideal for use with Roundup® or other acid applications.

KEY FEATURES

Hydraulic motor drive: HM4C – 7GPM for open/closed center systems
Port sizes: 1 1⁄2″ NPT inlet, 1 1⁄4″ NPT outlet
Gallons Per Minute: 115
Max PSI: 93
MATERIALS

Housing: 316 stainless steel
Impeller: Stainless Steel models – glass-filled polypropylene
Pump seals: Stainless Steel models – Life Guard silicon carbide standard
PART SCHEMATICS
