7700C

Description

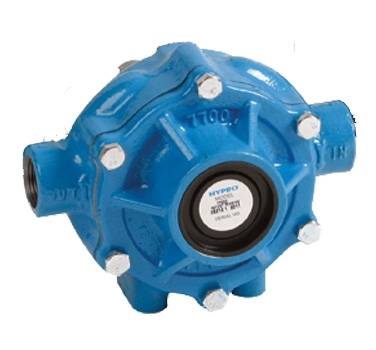

Model 7700 7-Roller Series – Cast Iron The 7700 series, 7 roller, pump achieves up to 22.1 gpm and 200 psi KEY FEATURES Super Rollers standard provide premium wear life Viton seals offer the best overall chemical resistanc Counter-clockwise shaft rotation for easy PTO adaption15/16″ solid stainless steel shaft for corrosion resistance MATERIALS: Cast Iron pumps lasted to 140 hours before failure MAX FLOW:14.2 gpm at 540 rpm, 22.1 gpm at 800 rpm
MAX PRESSURE:;Continuous 100 psi, Intermittent 200 psi
MAX FLUID TEMPERATURE:140&deg F
MAX RATE SPEED: 800 rpm
PORT SIZE: 3/4″ NPT
PUMP SHAFT: 15/16″ solid stainless steel
PUMP SHAFT ROTATION: CCW
HOUSING and ROTOR Cast Iron (C)
ROLLERS:< Super Rollers SHAFT SEALS: Viton WEIGHT: 14 lbs
